How Does a Ceramic Pellet Igniter Transform Biomass Heating Efficiency?
2025-11-17

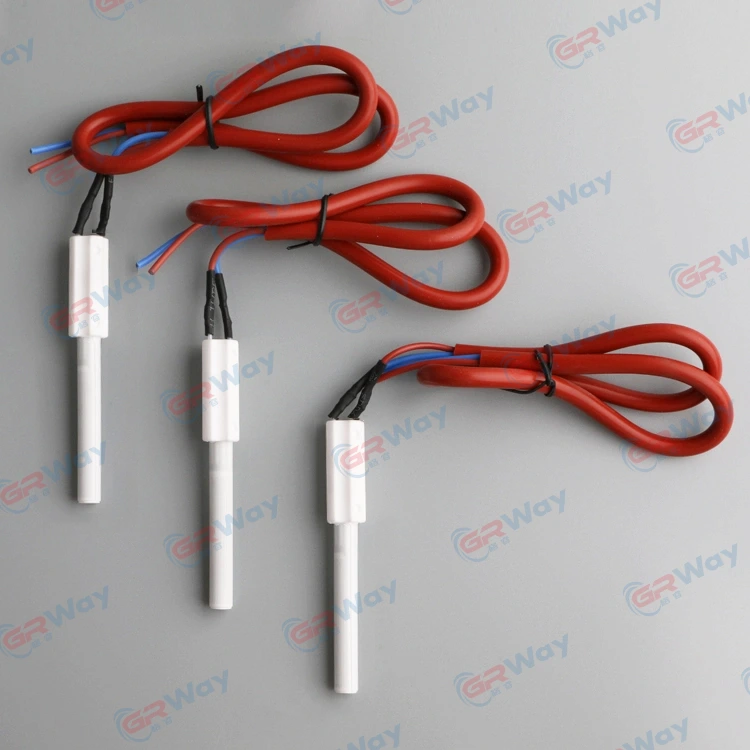

Ceramic pellet igniters from GREENWAY® enable <300-second cold-start ignition in wood pellet stoves and industrial biomass boilers. Unlike traditional hot rods, these silicon nitride/aluminum oxide cores withstand 850°C continuous operation while reducing ignition failures by 68% (per ISO 13732-1 thermal testing).
GREENWAY® Igniter Specifications: Industrial-Grade Performance
Table 1: Technical Comparison-
| Parameter | Al₂O₃ Series | Si₃N₄ Series | Test Standard |
|---|---|---|---|
| Max Surface Temperature | 850°C | 1, 100°C | IEC 60335-1 |
| Time to Ignition (20°C) | 90 sec | 75 sec | EN 14785:2006 |
| Thermal Shock Resistance | 350 cycles | 500+ cycles | ISO 1893 |
| Average Lifespan (Cycles) | 12, 000 | 15, 000 | DIN EN 60335-2-102 |
| Power Consumption (120V) | 240W - 400W | 280W - 480W | UL 1278 |
| Element Dimensions Ø x L | 8mm x 70mm (Std) | 8mm x 70mm (Std) | Custom to 12x120mm |
Ceramic Pellet Igniter Critical FAQ
Q: How to tell if the ceramic pellet igniter in my stove is failing?
A: Watch for these symptoms:Extended ignition time (>180 seconds for pellet stoves)Incomplete pellet combustion with black residueError codes: "IGN" faults on Harman/QuadraFire controllersVisible cracks or oxidation pits on silicon nitride core
Q: Why won’t my pellets ignite despite a glowing igniter?
A: Typically airflow/fuel issues - troubleshoot sequentially:
Vacuum leaks: Test door gasket seal with dollar bill
Pellet bridging: Clear hopper/fuel chute obstructions
Draft interference: Install intake air kit if negative pressure >0.05" W.C.
Moisture problems: Check pellet integrity (should snap, not bend)
Q: How does GREENWAY’s corrosion-resistant coating improve igniter lifespan?
A: Two critical mechanisms:
Zirconia-toughened alumina prevents chloride corrosion when burning treated wood
Crystalline silica layer blocks potassium vapor damage from corn fuels (per ASTM C863 testing)
