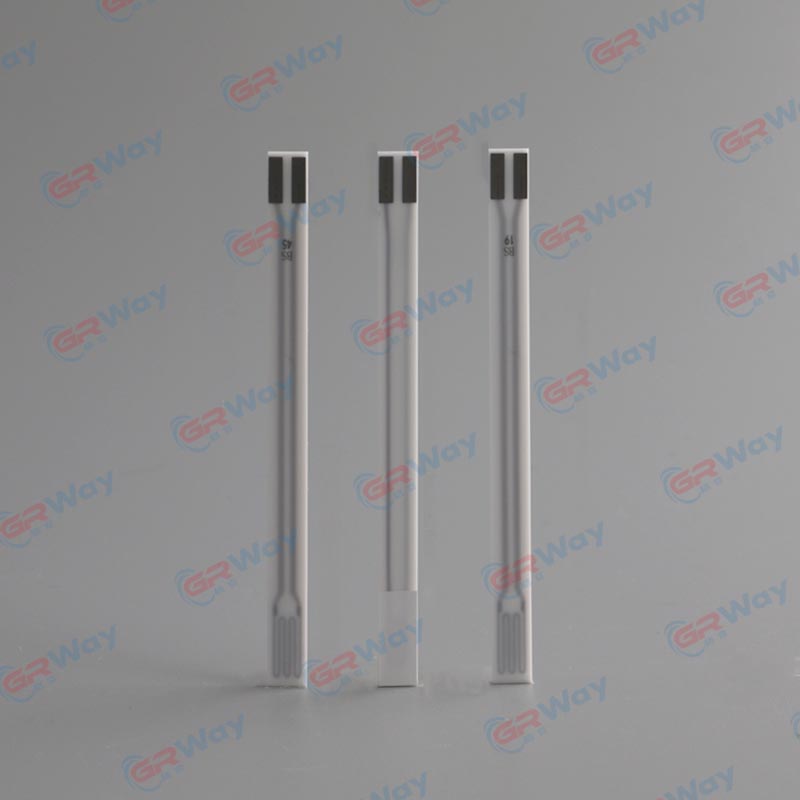

Bosch Lambda Sensor Plate Heater Element
  • Bosch Lambda Sensor Plate Heater Element - 0 Bosch Lambda Sensor Plate Heater Element - 0
  • Bosch Lambda Sensor Plate Heater Element - 1 Bosch Lambda Sensor Plate Heater Element - 1
  • Bosch Lambda Sensor Plate Heater Element - 2 Bosch Lambda Sensor Plate Heater Element - 2
  • Bosch Lambda Sensor Plate Heater Element - 3 Bosch Lambda Sensor Plate Heater Element - 3
  • Bosch Lambda Sensor Plate Heater Element - 4 Bosch Lambda Sensor Plate Heater Element - 4

Bosch Lambda Sensor Plate Heater Element

GREENWAY® is a wholesaler and manufacturer of Bosch Lambda Sensor Plate Heater Element. Denso, Delphi, NTK & NGK Oxygen Lambda Sensor are available from us. Oxygen sensors are designed to monitor the amount of oxygen that’s in the car’s exhaust stream, while ceramic heater plays an important role in the O2 sensor.

Send Inquiry

PDF DownLoad

Product Description

New laminated planar oxygen sensor combined alumina and zirconia together, heater element was embedded in the zirconia substrate of the sensor element adopting alumina for the heater substrate material, solve the problem of low thermal conductivity of zirconia while guarantee the good heating. The new laminated planar oxygen sensor can be activated in 10 seconds after a cold start.


Bosch sensor is designed to measure the proportion of oxygen in exhaust gases of automotive gasoline engines. The wide band lambda sensor LSU 4.2 is a planar ZrO2 dual cell limiting current sensor with integrated heater. Its monotonic output signal in the range of lambda 0.65 to air makes the LSU capable of being used as a universal sensor for lambda 1 measurement as well as for other lambda ranges.


Electrical Properties of Bosch Lambda Sensor Plate Heater element

1. Working voltage:13V+/-1V

2.Heating Resistance:9.5+/-1Ω

3. Heater Dimension:58.6*4.4*1.25mm

4. Heater current:0.5+/-0.1A

5. Activation time:≤5s

6.Time to 350℃:≤7s

7.Peak temperature:770+/-50 ℃

8.Working temperature:350~850℃

9.Application: Bosch LSF 4.2 lambda sensor


GREENWAY Bosch Oxygen sensor heating element applications:

1. Automobile Oxygen sensor

2. Motorcycle oxygen sensor

3. Customer-specific heating solutions


GRWAY plate models.pdf
