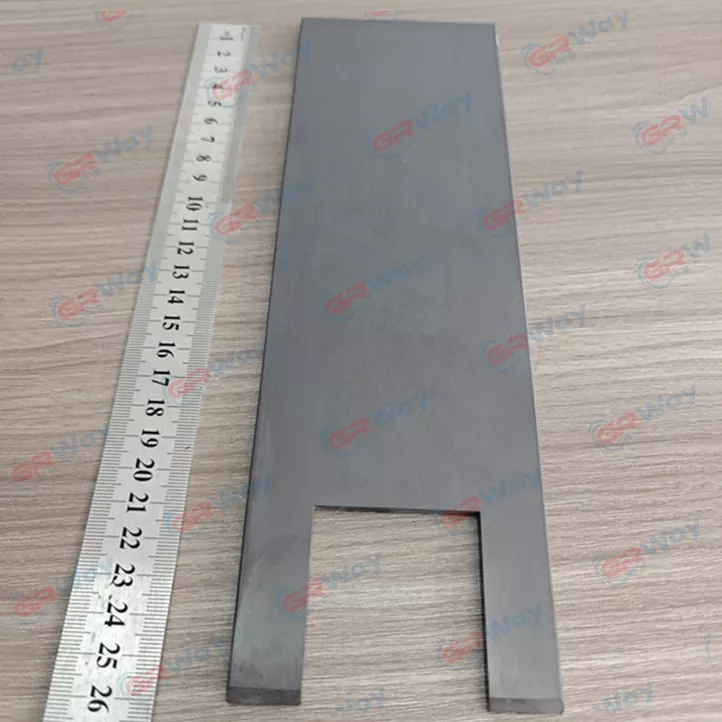

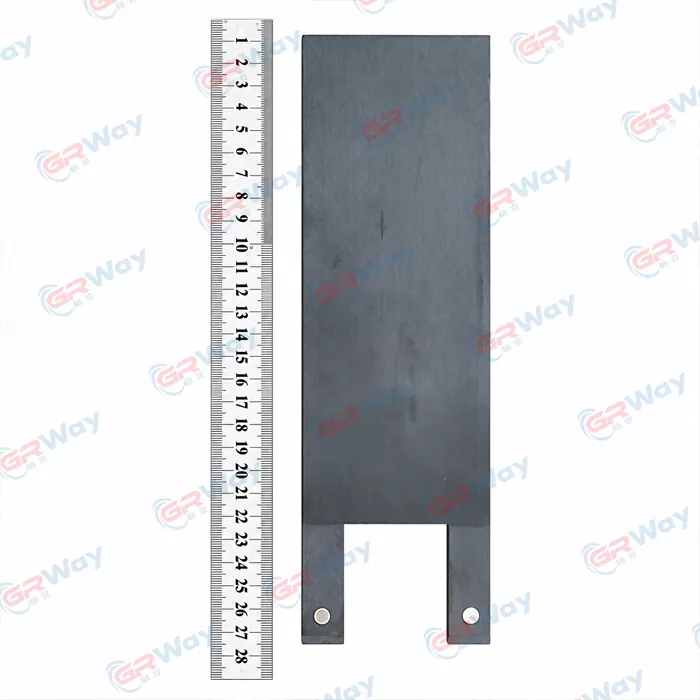

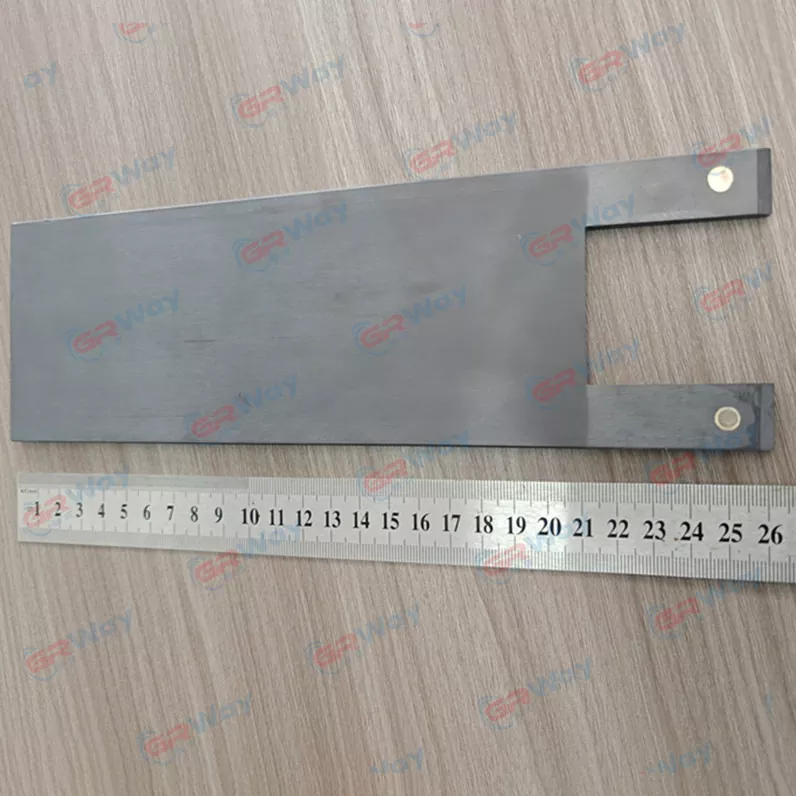

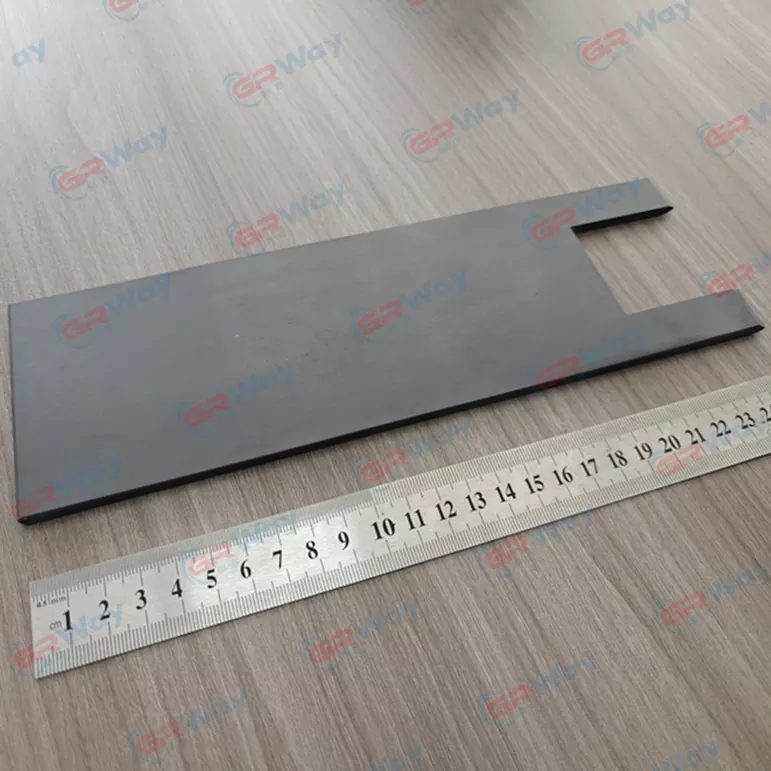

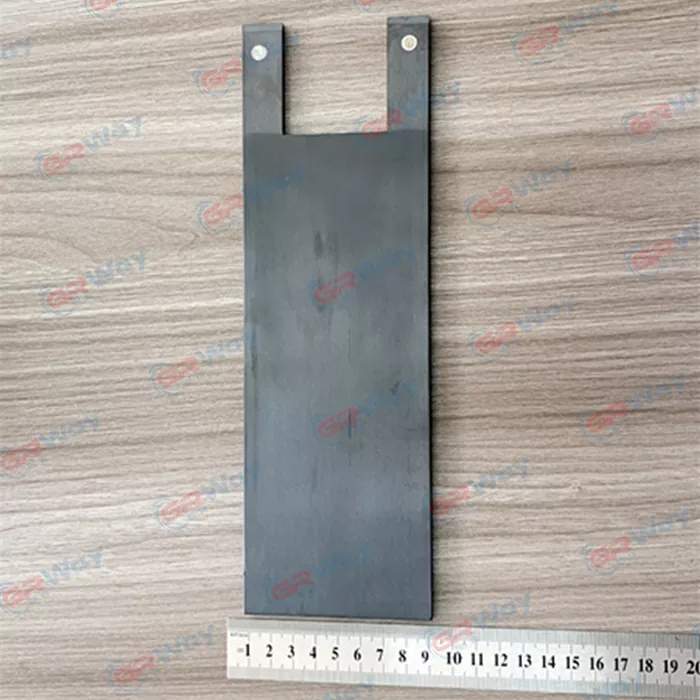

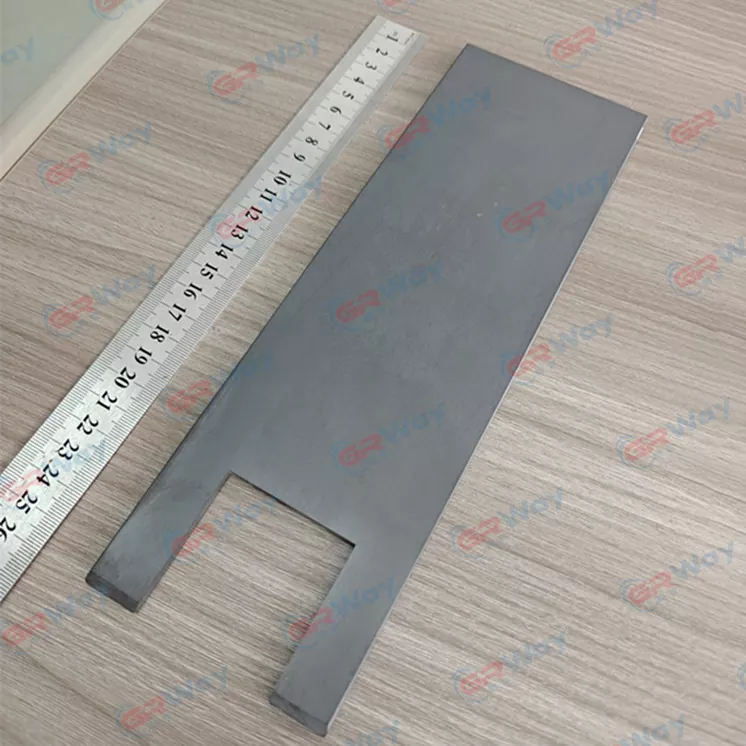

2600W Silicon Nitride Heating Element

GREENWAY is a manufacturer and supplier of OEM 2600W Silicon Nitride Heating Element. we focus on product manufacturing, quality control, and meeting the practical requirements of our customers. Custom size is available.

While many commonly available silicon nitride heating elements on the market are within approximately 120mm in length, our new 260mm model offers a significantly longer design option for applications that require an extended heating section or a different component configuration.

Product Specifications

Key Features

1. Extended 260 mm Design

With a 260 mm overall length, this heating element provides an extended format for equipment requiring a longer heating component.

2. 2600W Power at 380V

Rated at 2600W and 380V, the element provides defined electrical specifications for integration into compatible industrial heating systems.

3. Heating to 1000°C in Under 60 Seconds

The specified heat-up time is under 60 seconds to reach 1000°C, making it suitable for evaluating applications that require rapid temperature rise.

4. Maximum Operating Temperature of 1300°C

The 1300°C maximum operating temperature supports high-temperature heating applications, subject to the requirements of the complete heating system.

5. Silicon Nitride Material

Made from silicon nitride, the element features a listed thermal conductivity of 25–31 W/(m·K) and mechanical strength of 147 MPa, along with thermal shock, wear and corrosion resistance.

Why Choose Silicon Nitride Heating Elements?

Excellent Thermal Performance:25-+31=-6W/mk

High Mechanical Strength:147/Mpa

Good Thermal Shock Resistance

High-Temperature Capability

Corrosion and Wear Resistance

A Major Size Breakthrough: 260mm Length Instead of the Common 120mm Range

In the current market, many commonly available silicon nitride heating elements are designed within approximately 120mm in length. These standard-size products can meet the needs of many applications, but they may not be suitable for equipment requiring a longer heating component.

OEM Customization for Equipment Integration

GREENWAY supports customization of dimensions, voltage and power for the 2600W Silicon Nitride Heating Element. These options allow the component specification to be adapted to different equipment layouts and electrical requirements.

For a customization request, provide the following information:

1. Dimensional requirements: Overall length, width, thickness and available installation space.

2. Electrical requirements: Supply voltage and required power.

3. Heating requirements: Target temperature and required heat-up time.

4. Equipment details: A technical drawing or installation dimensions, along with relevant operating conditions.

FAQ

Q1: What is the main advantage of your new 260mm silicon nitride heating element?

Its key differentiators are its 260mm overall length and 2600W rated power. Compared with the approximately 120mm length commonly found in many market offerings, the extended design provides an additional option for equipment requiring a longer component.

Q2: Why choose silicon nitride instead of conventional ceramic materials?

Silicon nitride offers a combination of mechanical strength, thermal performance, thermal shock resistance, and wear resistance. The actual benefits depend on the material grade, product design, and application conditions.

Q3: How do I confirm whether the 2600W model is suitable for my equipment?
